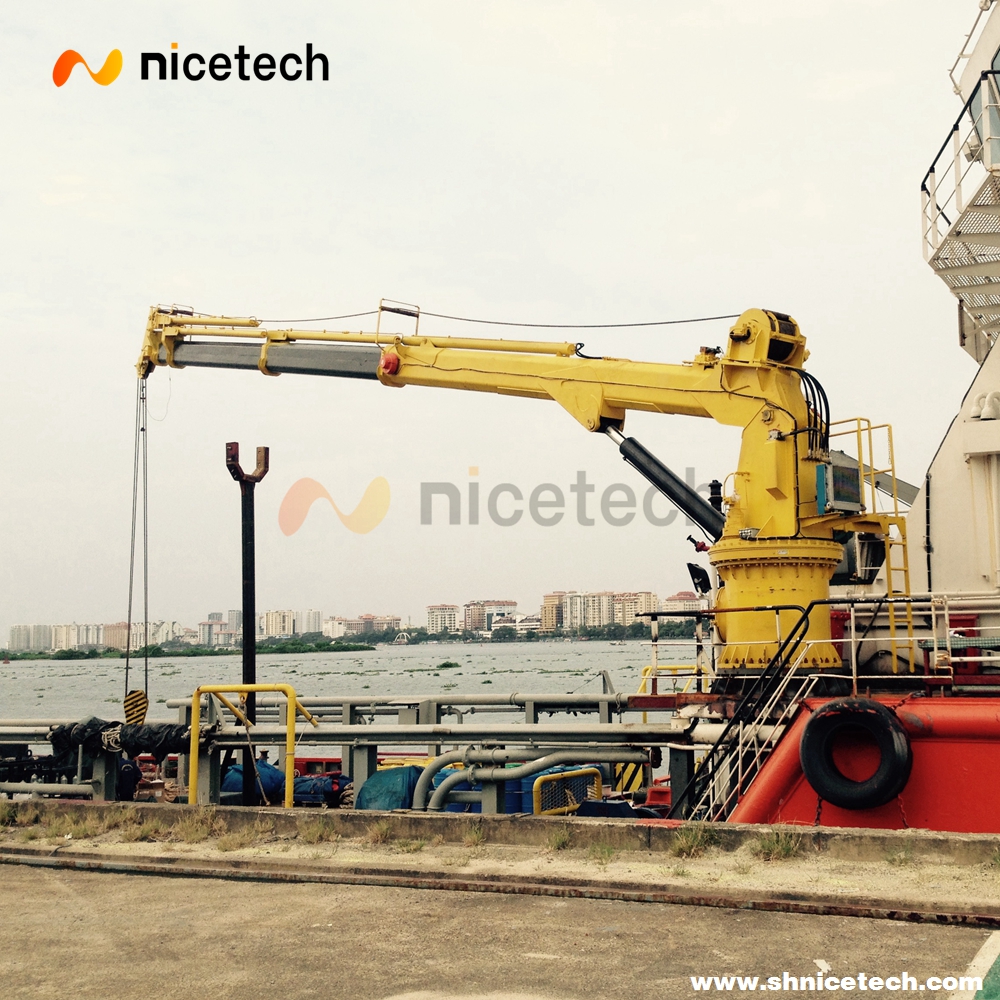

The marine telescopic crane comprises a base, which the base is connected with a tower body through a rotating system; the rotating system is connected with a power device which is arranged under a ship deck.
Typical Applications：
Service cranes, Provision and cargo handling cranes, Fishing and fish farming cranes.
Powerful load capacity
With box-type heavy frame design, its anti-bending and torsional modulus is greatly improved, and the rigidity is improved above 30%.
Strong travelling capacity
High power 162kW engine + Fast 8-gear gearbox, it is more powerful and more mobility.
Innovative layout
Power system and transmission system are of optimized layout; the bedplate is more flat with super-large storage space.
Diversified matching options
Functional matching: Auxiliary winch is optional, and the customers could choose independently to satisfy diversity of working conditions; superstructure air conditioner is optional;
Regional matching: Engine emissions complies with Euro 3, Euro IV, Euro V standards;
|
Crane Type |
SWL(ton) |
Working Radius(m) |
Lifting Moment（kNm） |
Hoisting Speed(m/min) |
Slewing angle（°） |
|
SHNC-20 |
0.3~0.5 |
0.6~3.0 |
9~15 |
0~15 |
360 |
|
SHNC-45 |
0.5~1.0 |
0.8~4.0 |
20~40 |
0~15 |
360 |
|
SHNC-80 |
0.5~1.2 |
1.5~6.0 |
30~72 |
0~15 |
360 |
|
SHNC-165 |
0.5~2.0 |
1.5~8.0 |
40~160 |
0~15 |
360 |
|
SHNC-400 |
1.0~3.5 |
2.0~10.0 |
100~350 |
0~15 |
360 |
|
SHNC-450 |
1.5~3.5 |
2.0~12.0 |
180~420 |
0~15 |
360 |
|
SHNC-600 |
1.5~4.0 |
3.0~14.0 |
210~560 |
0~15 |
360 |
|
SHNC-800 |
2.0~5.0 |
3.5~15.0 |
300~750 |
0~12 |
360 |
|
SHNC-1000 |
2.5~6.0 |
3.5~16.0 |
400~960 |
0~12 |
360 |
|
SHNC-1200 |
2.5~6.5 |
4.5~18.0 |
450~1170 |
0~12 |
360 |
|
SHNC-1400 |
2.5~7.0 |
4.5~19.0 |
475~1330 |
0~12 |
360 |
|
SHNC-1560 |
3.0~7.5 |
5.0~20.0 |
600~1500 |
0~10 |
360 |
|
SHNC-1800 |
3.5~8.0 |
5.0~22.0 |
770~1760 |
0~10 |
360 |
 |
 |
 |
 |
 |
 |
