Our company provides the service of refitting the container spreader crane into grab-type ship loader for bulk material loading and unloading. Also corollary equipment----dust trap hopper system building.

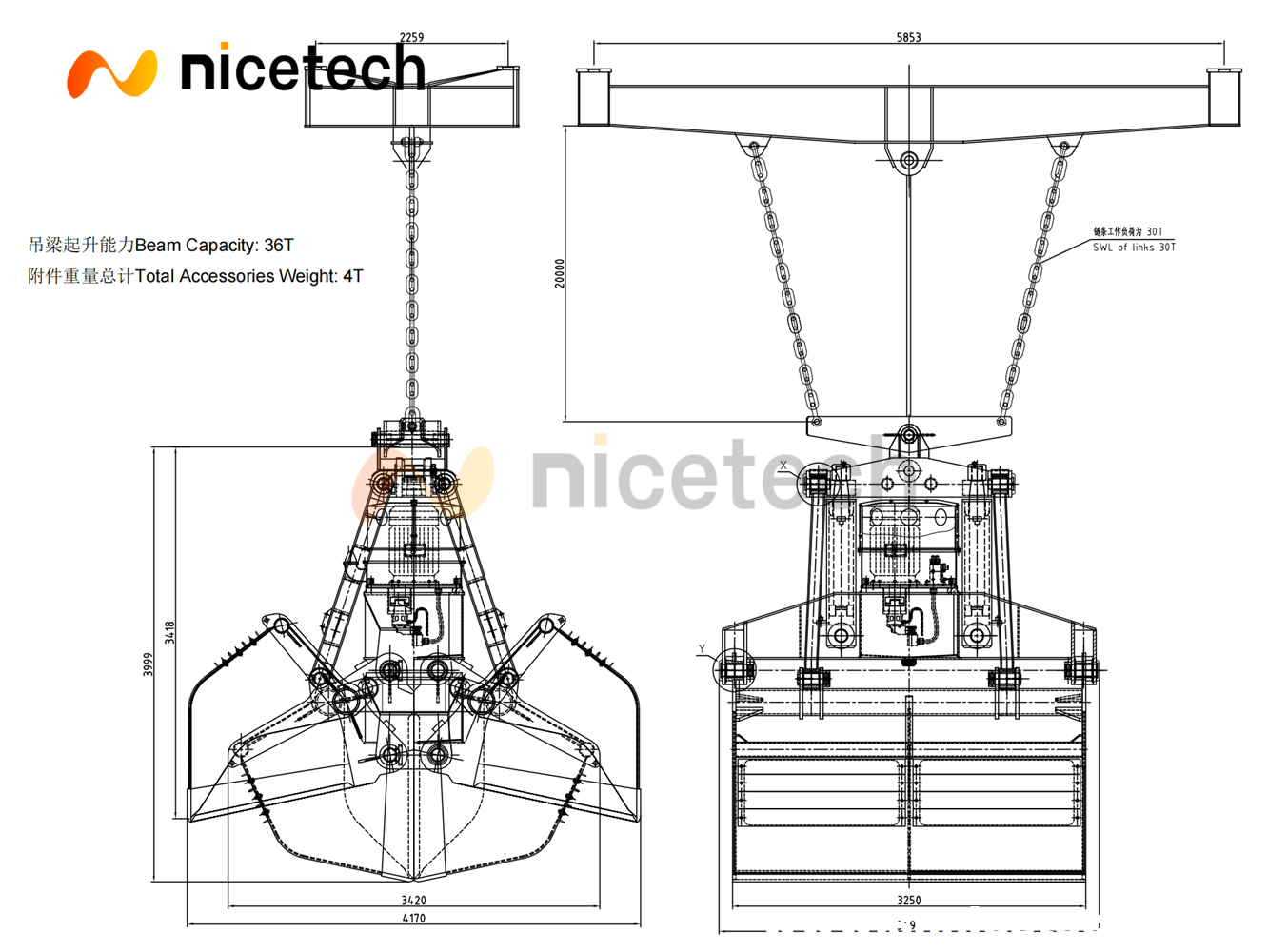

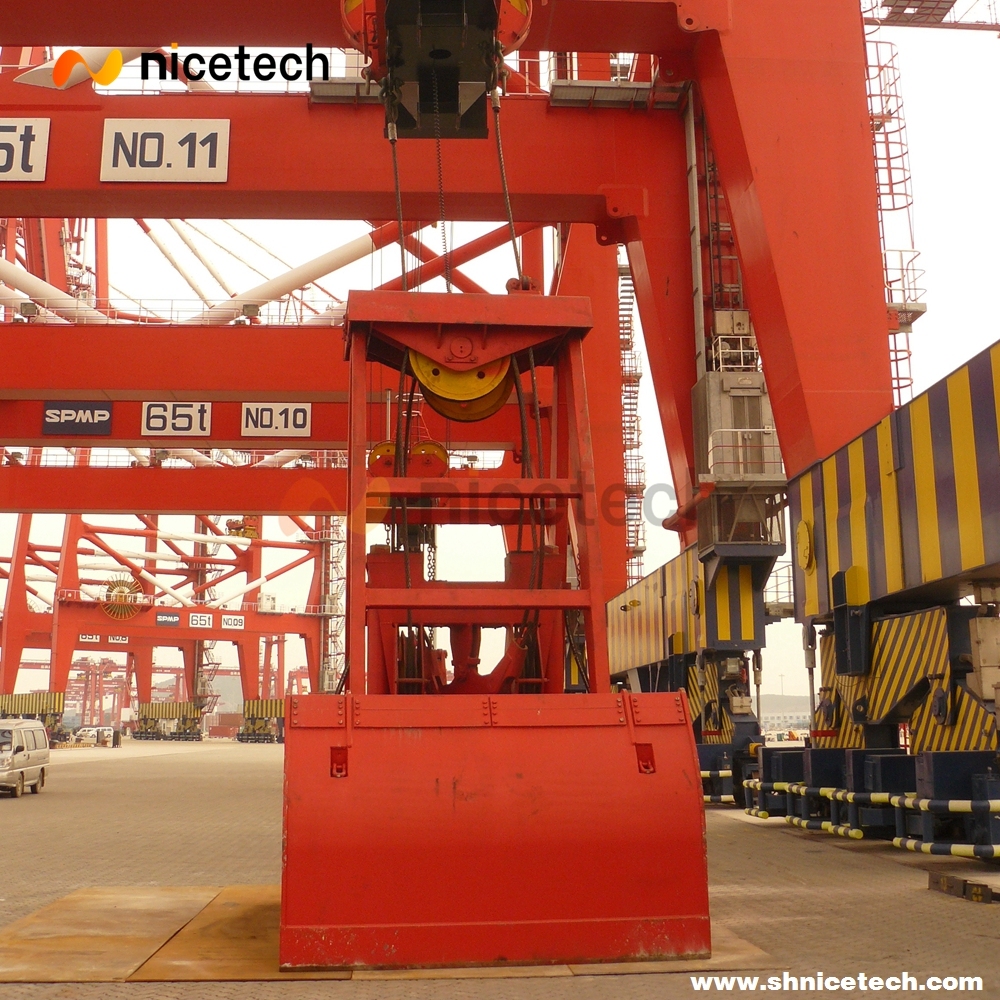

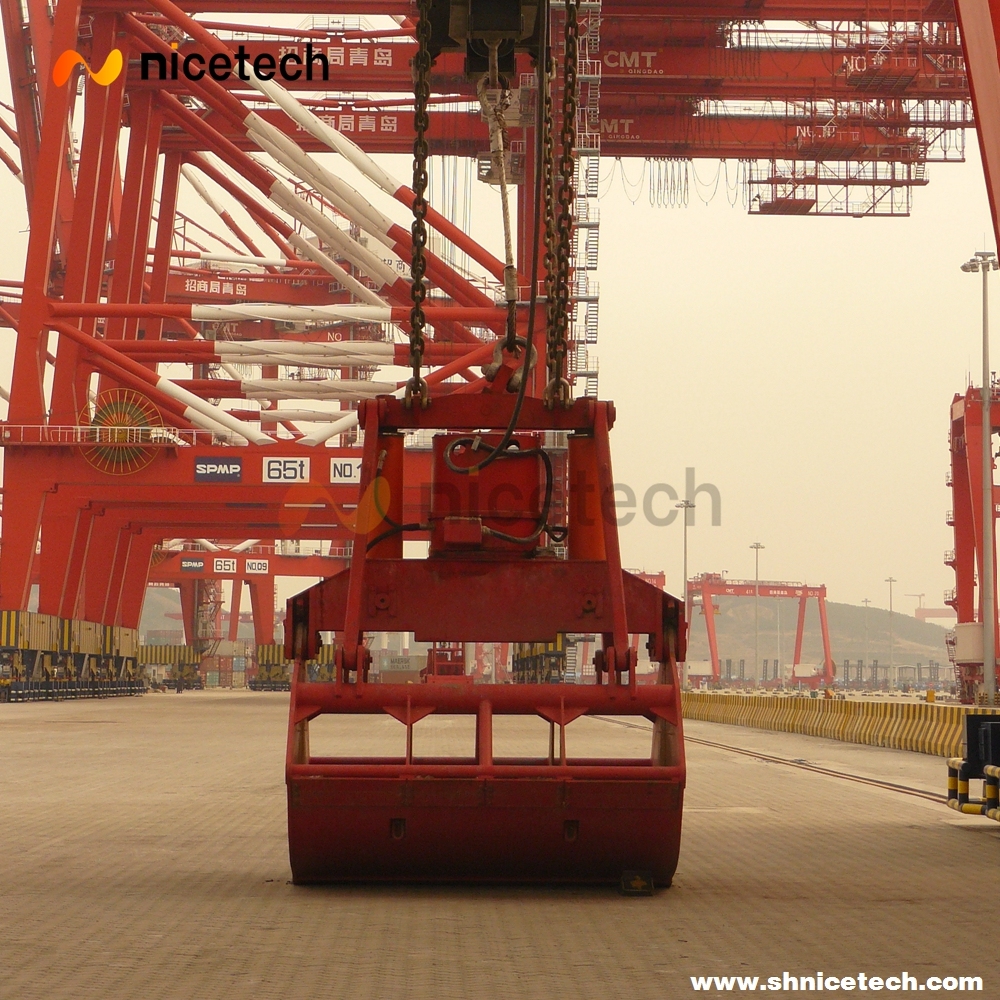

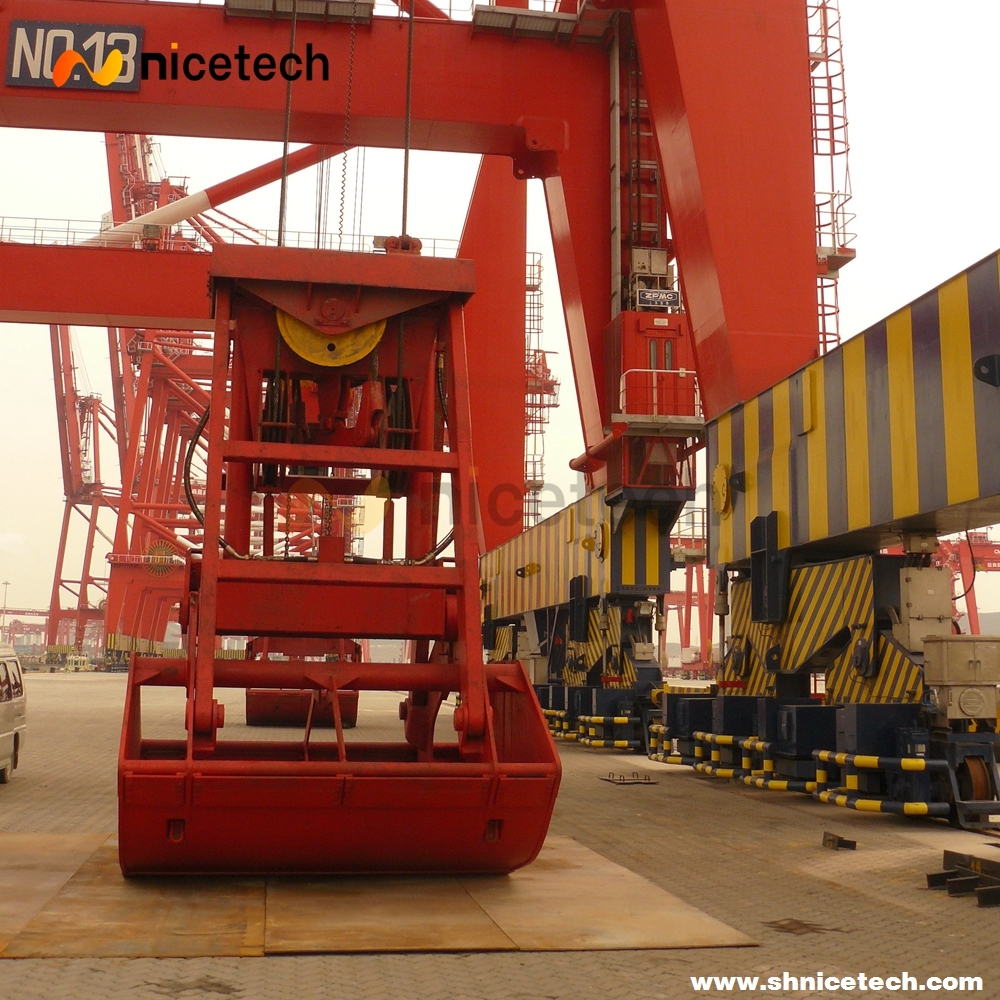

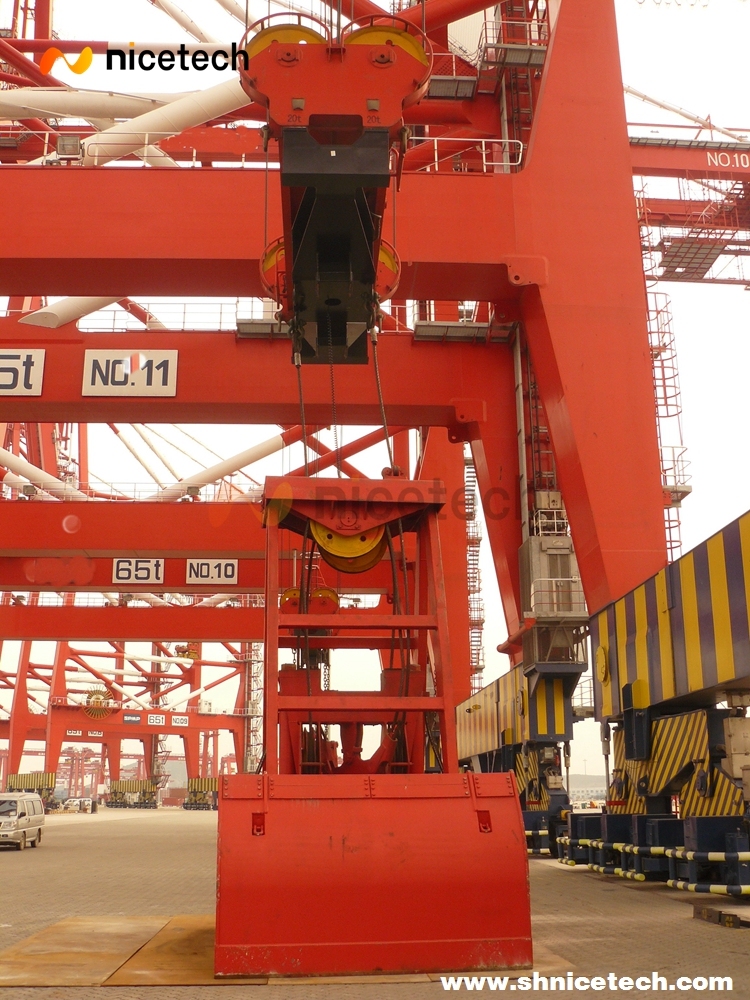

Originally, the container spreader crane can only hang the container spreaders, after our professional refitting (With a lifting beam, to connect the wireless remote control grab or the electro hydraulic clamshell grab with the refitted container spreader crane), it becomes into a grab-type ship loader. After being refitted, the crane can be used with two types of grabs - wireless remote control gab and electric hydraulic clamshell grab .So it can load and unload many kinds of bulk materials, such as grain, coal, sand, fertilizer and so on. Thereby, the refitted equipment increases the operation rate of the container spreader crane.
|
SWL (t) |
6.3 |
8.0 |
10.0 |
12.5 |
16.0 |
20.0 |
25.0 |
32.0 |
40.0 |
50.0 |
63.0 |
||
|
Dead weight (Kg) |
3 multiplying power |
2700 |
3200 |
3920 |
4740 |
6080 |
7760 |
9800 |
12960 |
16000 |
21200 |
26600 |
|
|
4 multiplying power |
2860 |
3300 |
4000 |
4900 |
6240 |
8000 |
10120 |
13200 |
16400 |
21600 |
27000 |
||
|
Capacity (m3) |
3 multiplying power |
4.5 |
5.9 |
7.6 |
9.7 |
12.4 |
15.3 |
19.0 |
23.8 |
30.0 |
36.0 |
45.5 |
|
|
4 multiplying power |
4.3 |
5.8 |
7.5 |
9.5 |
12.2 |
15.0 |
18.6 |
23.5 |
29.5 |
35.5 |
45.0 |
||
|
Pulley |
Diameter (mm) |
355 |
400 |
450 |
500 |
560 |
630 |
630 |
710 |
800 |
1000 |
1215 |
|
|
Steel rope |
Diameter (mm) |
18 |
20 |
22 |
24 |
26 |
28 |
32 |
36 |
40 |
48 |
56 |
|
|
Length m |
3 multiplying power |
10.0 |
10.3 |
11.3 |
12.0 |
13.5 |
14.5 |
15.0 |
16.8 |
18.2 |
20.0 |
21.5 |
|
|
4 multiplying |
12.0 |
13.5 |
14.5 |
16.0 |
17.5 |
19.0 |
20.0 |
22.0 |
24.0 |
26.0 |
28.5 |
||
|
route mm |
3multiplying |
4960 |
5450 |
5960 |
6430 |
7060 |
7520 |
8130 |
8740 |
9420 |
10320 |
11040 |
|
|
4multiplying |
6620 |
7270 |
7950 |
8550 |
9420 |
10060 |
10850 |
11640 |
12560 |
13760 |
14750 |
||
|
Size (mm) |
A |
3300 |
3710 |
3970 |
4320 |
4700 |
5100 |
5380 |
5860 |
6400 |
7030 |
7600 |
|
|
B |
2940 |
3320 |
3500 |
3740 |
4130 |
4520 |
4680 |
5160 |
5650 |
6230 |
6700 |
||
|
C |
2330 |
2520 |
2760 |
3010 |
3260 |
3460 |
3730 |
4000 |
4330 |
4660 |
5020 |
||
|
D |
3220 |
3580 |
3760 |
3960 |
4410 |
4660 |
5020 |
5490 |
5860 |
6280 |
6850 |
||
|
E |
2400 |
2640 |
2820 |
2960 |
3300 |
3480 |
3750 |
4000 |
4400 |
4700 |
5100 |
||
|
F |
460 |
600 |
800 |
1000 |
1100 |
1280 |
1280 |
1400 |
1500 |
1750 |
2080 |
||
|
G |
380 |
430 |
480 |
530 |
590 |
670 |
670 |
760 |
850 |
1080 |
1300 |
||
|
Type（SHNC） |
Density (t/ m3) |
Dead weight (Kg) |
SWL (t) |
Volume (m3) |
pulley |
Wire rope |
Overall size（mm） |
|||||||
|
Dia. |
Rate |
Dia. |
Length |
stroke |
A |
B |
C |
D |
E |
|||||
|
SHNC10.0-2.6-2600 |
2.6 |
3240 |
10.0 |
2.60 |
450 |
2 |
22 |
13.5 |
4850 |
3610 |
3850 |
2240 |
3760 |
2300 |
|
SHNC12.5-2.6-3200 |
2.6 |
4180 |
12.5 |
3.20 |
500 |
2 |
24 |
14.7 |
5110 |
3940 |
4180 |
2320 |
4080 |
2400 |
|
SHNC16.0-2.6-4100 |
2.6 |
5340 |
16.0 |
4.10 |
560 |
2 |
26 |
16.3 |
5600 |
4370 |
4630 |
2360 |
4510 |
2460 |
|
SHNC20.0-2.6-5200 |
2.6 |
6480 |
20.0 |
5.20 |
630 |
2 |
28 |
18.5 |
6220 |
4890 |
5040 |
2570 |
5050 |
2660 |
|
SHNC25.0-2.6-6500 |
2.6 |
8100 |
25.0 |
6.50 |
630 |
2 |
32 |
19.0 |
6350 |
5010 |
5230 |
2780 |
5240 |
2750 |
|
SHNC32.0-2.6-8200 |
2.6 |
10680 |
32.0 |
8.20 |
710 |
2 |
36 |
20.8. |
7080 |
5580 |
5830 |
3020 |
5740 |
2920 |
|
SHNC40.0-2.6-10200 |
2.6 |
13480 |
40.0 |
10.20 |
800 |
2 |
40 |
23.5 |
7980 |
6230 |
6520 |
3280 |
6350 |
3050 |
|
SHNC50.0-2.6-12700 |
2.6 |
16980 |
50.0 |
12.70 |
900 |
2 |
44 |
25.0 |
8650 |
6640 |
7010 |
3560 |
6680 |
3240 |
|
SHNC63.0-2.6-16000 |
2.6 |
21400 |
63.0 |
16.00 |
1000 |
2 |
48 |
29.0 |
10390 |
7620 |
7950 |
3840 |
7620 |
3470 |
|
|
||||||||||||||
|
SHNC10.0-3.2-2150 |
3.2 |
3120 |
10.0 |
2.15 |
450 |
2 |
22 |
14.0 |
4850 |
3610 |
3850 |
2240 |
3760 |
1900 |
|
SHNC12.5-3.2-2650 |
3.2 |
4020 |
12.5 |
2.65 |
500 |
2 |
24 |
15.0 |
5110 |
3940 |
4180 |
2320 |
4080 |
1980 |
|
SHNC16.0-3.2-3400 |
3.2 |
5120 |
16.0 |
3.40 |
560 |
2 |
26 |
16.3 |
5600 |
4370 |
4630 |
2360 |
4510 |
2040 |
|
SHNC20.0-3.2-4250 |
3.2 |
6400 |
20.0 |
4.25 |
630 |
2 |
28 |
18.5 |
6220 |
4890 |
5040 |
2570 |
5050 |
2170 |
|
SHNC25.0-3.2-5350 |
3.2 |
7880 |
25.0 |
5.35 |
630 |
2 |
32 |
19.0 |
6350 |
5010 |
5230 |
2780 |
5240 |
2260 |
|
SHNC32.0-3.2-6700 |
3.2 |
10560 |
32.0 |
6.70 |
710 |
2 |
36 |
20.8. |
7080 |
5580 |
5830 |
3020 |
5740 |
2380 |
|
SHNC40.0-3.2-8400 |
3.2 |
13120 |
40.0 |
8.40 |
800 |
2 |
40 |
23.5 |
7980 |
6230 |
6520 |
3280 |
6350 |
2510 |
|
SHNC50.0-3.2-10400 |
3.2 |
16720 |
50.0 |
10.40 |
900 |
2 |
44 |
25.0 |
8650 |
6640 |
7010 |
3560 |
6680 |
2660 |
|
SHNC63.0-3.2-13200 |
3.2 |
20760 |
63.0 |
13.20 |
1000 |
2 |
48 |
29.0 |
10390 |
7620 |
7950 |
3840 |
7620 |
2860 |
 |
 |
 |
 |
 |
 |
