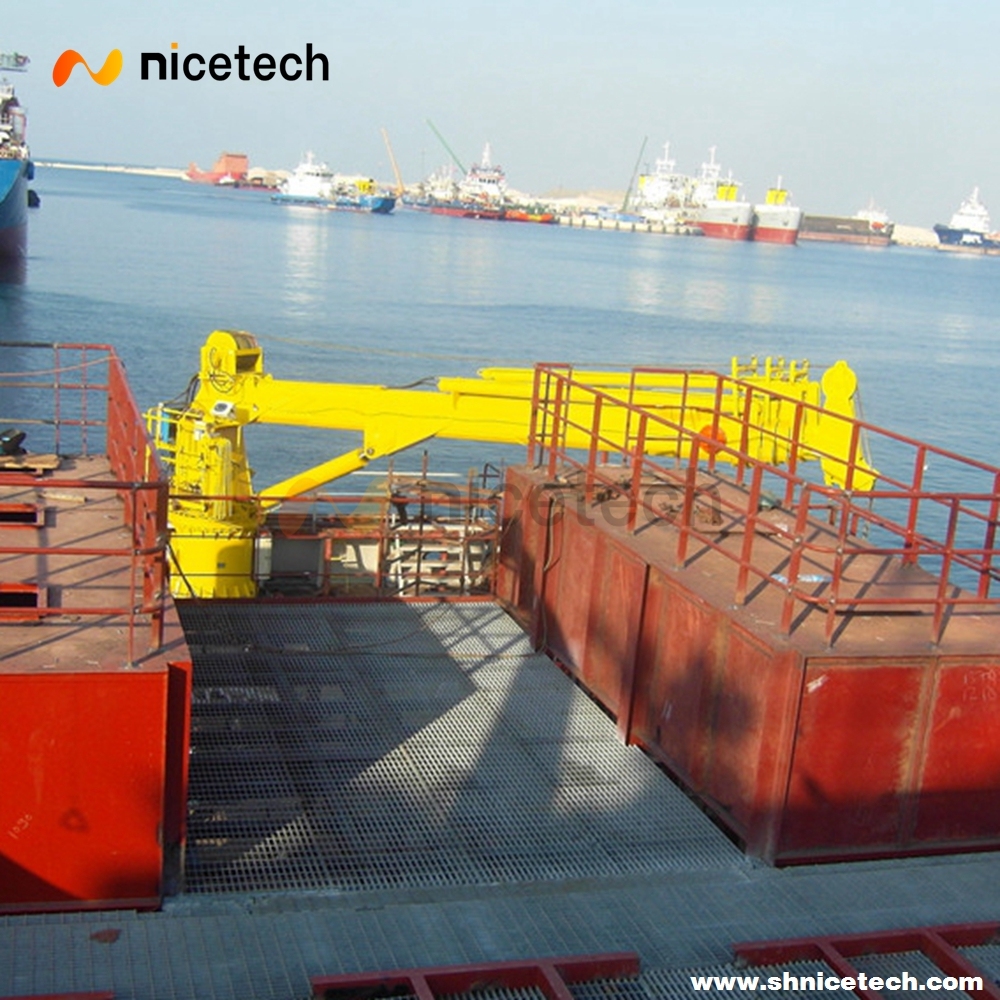

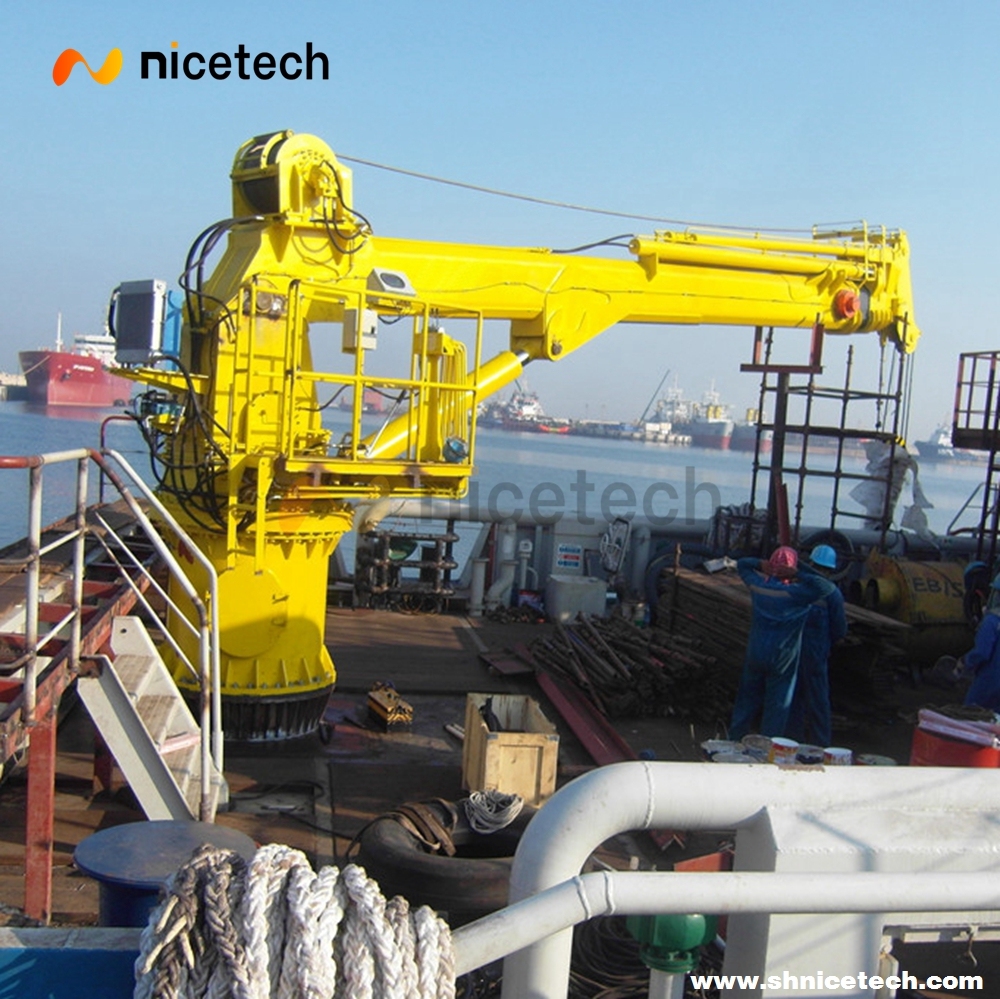

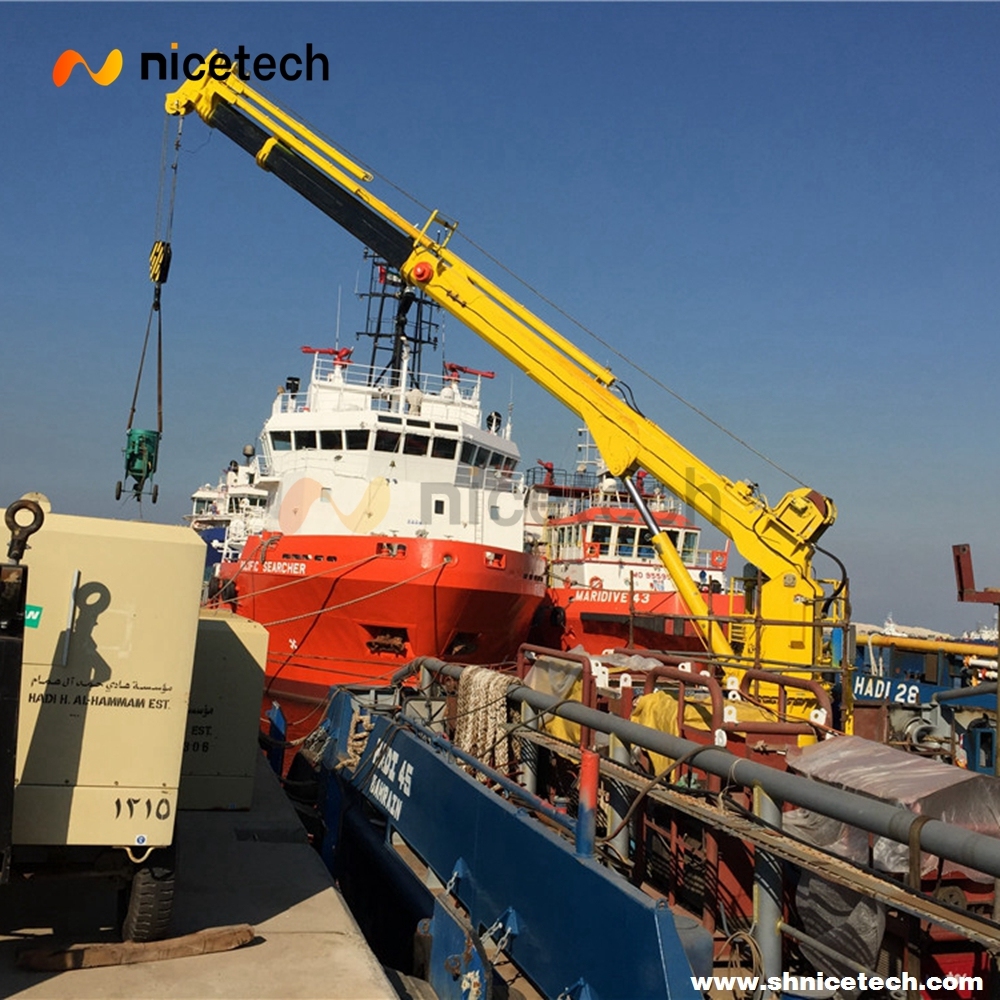

This foldable crane which can make full use of their strengths and flexibility when loading and unloading equipment.
With compact construction, the crane can easily be accommodated on every type of vessel, especially where space is limited.
Various features and options make the foldable knuckle boom cranes a multi-functional tool.
Typical Applications：
Service cranes, Provision and cargo handling cranes, Fishing and fish farming cranes.
Powerful load capacity
With box-type heavy frame design, its anti-bending and torsional modulus is greatly improved, and the rigidity is improved above 30%.
Strong travelling capacity
High power 162kW engine + Fast 8-gear gearbox, it is more powerful and more mobility.
Innovative layout
Power system and transmission system are of optimized layout; the bedplate is more flat with super-large storage space.
Diversified matching options
Functional matching: Auxiliary winch is optional, and the customers could choose independently to satisfy diversity of working conditions; superstructure air conditioner is optional;
Regional matching: Engine emissions complies with Euro 3, Euro IV, Euro V standards;
|
Crane Type |
SWL(ton) |
Working Radius(m) |
Lifting Moment（kNm） |
Hoisting Speed(m/min) |
Slewing angle（°） |
|
SHNC-20 |
0.3~0.5 |
0.6~3.0 |
9~15 |
0~15 |
360 |
|
SHNC-45 |
0.5~1.0 |
0.8~4.0 |
20~40 |
0~15 |
360 |
|
SHNC-80 |
0.5~1.2 |
1.5~6.0 |
30~72 |
0~15 |
360 |
|
SHNC-165 |
0.5~2.0 |
1.5~8.0 |
40~160 |
0~15 |
360 |
|
SHNC-400 |
1.0~3.5 |
2.0~10.0 |
100~350 |
0~15 |
360 |
|
SHNC-450 |
1.5~3.5 |
2.0~12.0 |
180~420 |
0~15 |
360 |
|
SHNC-600 |
1.5~4.0 |
3.0~14.0 |
210~560 |
0~15 |
360 |
|
SHNC-800 |
2.0~5.0 |
3.5~15.0 |
300~750 |
0~12 |
360 |
|
SHNC-1000 |
2.5~6.0 |
3.5~16.0 |
400~960 |
0~12 |
360 |
|
SHNC-1200 |
2.5~6.5 |
4.5~18.0 |
450~1170 |
0~12 |
360 |
|
SHNC-1400 |
2.5~7.0 |
4.5~19.0 |
475~1330 |
0~12 |
360 |
|
SHNC-1560 |
3.0~7.5 |
5.0~20.0 |
600~1500 |
0~10 |
360 |
|
SHNC-1800 |
3.5~8.0 |
5.0~22.0 |
770~1760 |
0~10 |
360 |
 |
 |
 |
 |
 |
 |
